DMM Klettersteig Alloy

DMM

£25.99

Gate
Quantity

Low on stock at present.

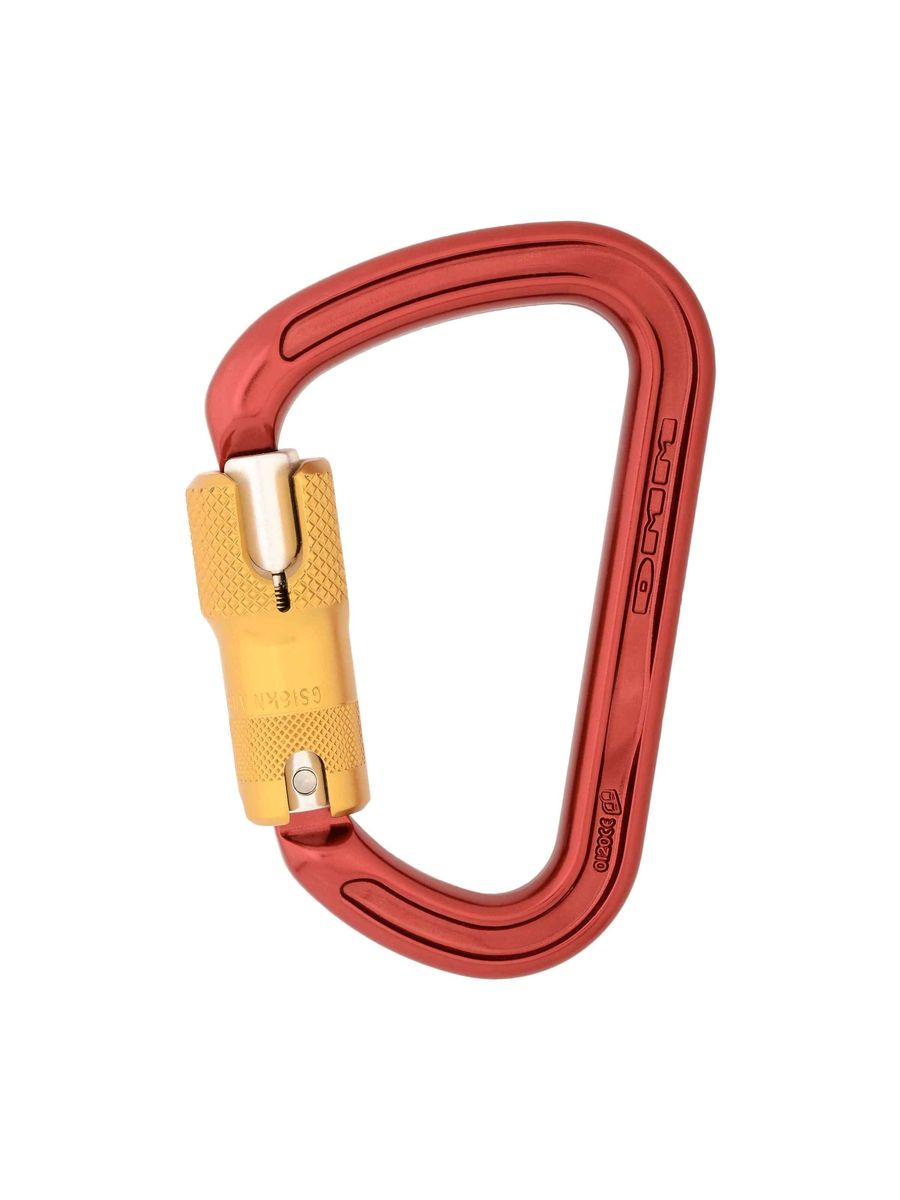

Our Klettersteig karabiner's wide gate opening and long flat basket make it ideal for clipping webbing and for use in complex rope-running applications.
The expanded D shape also keeps the load along the major axis maximising strength. Large size makes it easy to use with gloved hands.

Klettersteig for size
Klettersteig connectors look and behave very similarly to Offset Ds, but are wider. This design helps maximise the gate opening and the internal working volume, whilst still allowing any loads to be located as close to the spine of the connector as possible. Klettersteig connectors must pass an additional test to any of the other connectors as they are often subjected to loads in sub-optimal orientations.

Keylock clean nose for snag free connection
DMM's patented Taperlock closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the karabiner, as well as allowing a snag free connection for your ropes, slings and devices.

RefA843A847A847ANSI
ColourRedGreenGold
MBS
(Major)
30 kN30 kN30 kN
MBS
(Minor)
14kN14kN16kN
MBS
(Gate open)
10kN10kN10kN
Dims77 x 120mm76 x 120mm77 x 120mm
Wt87g90g109g
Gate
opening
24mm24mm21m

Certification

Standard: EN 362:2004 B/T, EN 12275:2013 B & K

Ansi: EN 362:2004 B/T, ANSI/ASSE Z359.12-2019, CAN/CSA Z259.12-16, NFPA 1983:2017 T

SKU: A847ANSI TAG: Connectors - Alloy Karabiners
